Model#

class cosmolayer.cosmosac.Model(min_sigma, max_sigma, num_points, area_per_segment, averaging_radius, f_decay, sigma_0, merge_profiles, temperature_exponents, interaction_matrix_generator)[source]#

Immutable configuration for a COSMO-SAC model variant.

Bundles all model-specific parameters into a single object, ensuring that components and mixtures are always created with consistent settings. Use the pre-built CosmoSac2002Model and CosmoSac2010Model singletons for standard calculations, or construct a custom instance for research purposes.

Parameters:

  • min_sigma (float) – Minimum screening charge density in e/Ų.

  • max_sigma (float) – Maximum screening charge density in e/Ų.

  • num_points (int) – Number of discrete points in the sigma grid.

  • area_per_segment (float) – Reference surface area of a single segment in Ų.

  • averaging_radius (float) – Effective radius for distance-weighted sigma averaging in Å.

  • f_decay (float) – Decay factor for exponential distance weighting in the sigma averaging procedure.

  • sigma_0 (float or None) – Standard deviation of the Gaussian probability of a segment to form a hydrogen bond in e/Ų. Set to None to disable hydrogen-bond splitting (all surface area is assigned to the NHB class).

  • merge_profiles (bool) – Whether segment-group profiles (NHB, OH, OT) should be merged into a single distribution by default when computing probabilities.

  • temperature_exponents (tuple[int, ...]) – Exponents applied to the temperature in the interaction energy expression. Must have the same length as the tuple returned by interaction_matrix_generator.

  • interaction_matrix_generator (Callable) – Function f(temperature) -> tuple[NDArray, ...] that produces the dimensionless interaction energy matrices ΔW/(RT) at a given temperature.

Examples

Using a pre-built model to create a component:

>>> from importlib.resources import files
>>> from cosmolayer.cosmosac.model import CosmoSac2002Model
>>> path = files("cosmolayer.data") / "C=C(N)O.cosmo"
>>> component = CosmoSac2002Model.create_component(path.read_text())
>>> component.area
97.34554...

Inspecting model parameters:

>>> CosmoSac2002Model.area_per_segment
7.5
>>> CosmoSac2002Model.merge_profiles
True
>>> CosmoSac2002Model.temperature_exponents
(1,)

Attributes

num_segment_types#

Number of segment types.

Methods

create_component(cosmo_string)[source]#

Create a Component consistent with this model.

Parameters:

cosmo_string (str) – Contents of a COSMO output file.

Returns:

Molecular component configured with the model’s parameters.

Return type:

Component

Examples

>>> from importlib.resources import files
>>> from cosmolayer.cosmosac.model import CosmoSac2010Model
>>> path = files("cosmolayer.data") / "C=C(N)O.cosmo"
>>> component = CosmoSac2010Model.create_component(path.read_text())
>>> component.area
97.34554...
>>> component.probabilities.shape
(153,)
create_interaction_matrices(temperature)[source]#

Create the interaction energy matrices at a given temperature.

Parameters:

temperature (float) – Temperature in Kelvin.

Returns:

Dimensionless interaction energy matrices ΔW/(RT). The number of matrices matches the length of temperature_exponents.

Return type:

tuple[NDArray[np.float64], …]

Examples

>>> from cosmolayer.cosmosac import CosmoSac2002Model, CosmoSac2010Model

COSMO-SAC 2002 produces a single interaction matrix:

>>> matrices = CosmoSac2002Model.create_interaction_matrices(298.15)
>>> len(matrices)
1
>>> matrix = matrices[0]
>>> matrix.shape
(51, 51)
>>> print(matrix.min() < 0)  # H-bonding can be favorable (negative)
True
>>> print(matrix.max() > 0)  # Misfit interactions are unfavorable
True

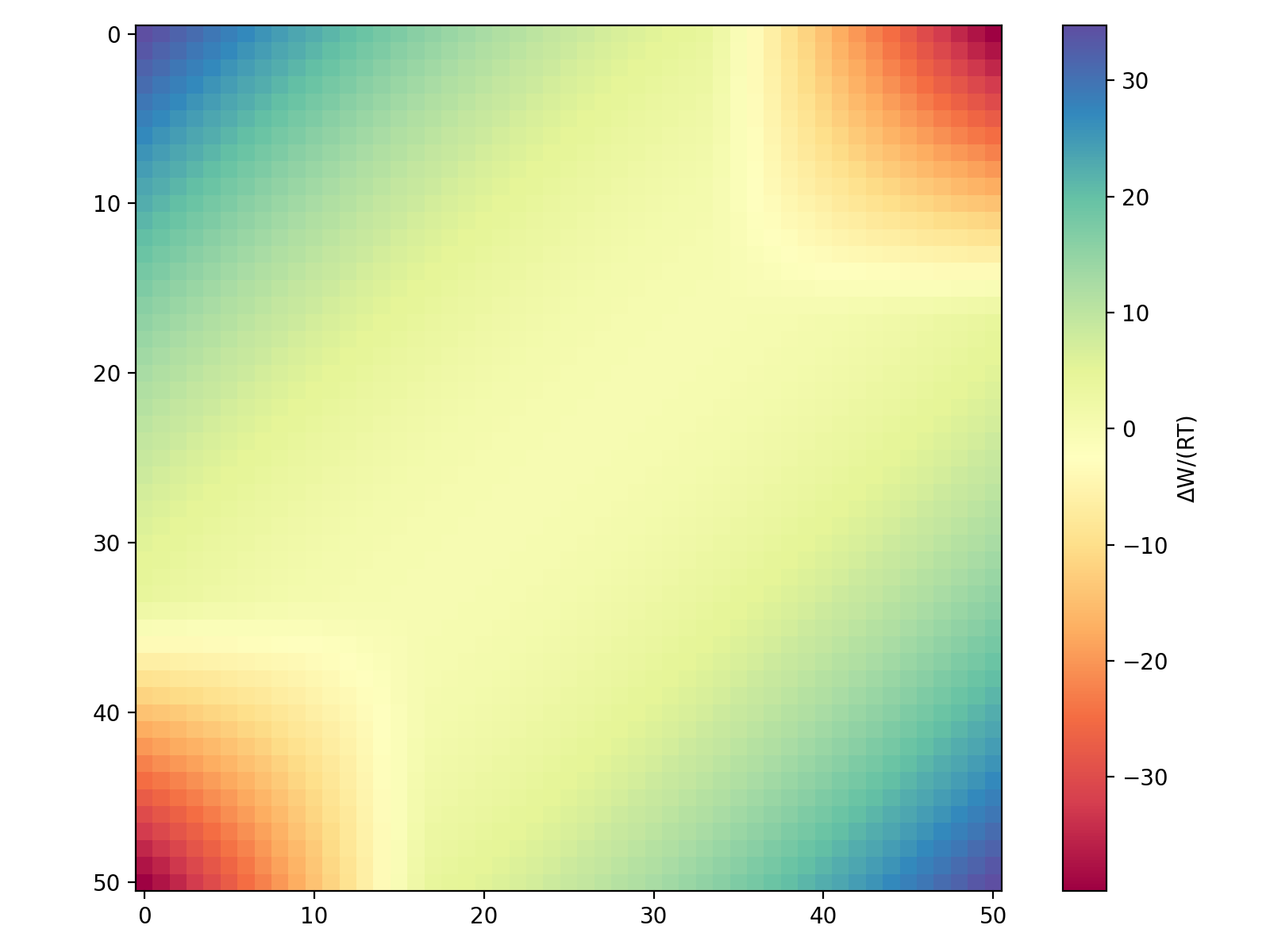

Plotting the COSMO-SAC 2002 interaction matrix:

>>> from cosmolayer.cosmosac import CosmoSac2002Model
>>> from matplotlib import pyplot as plt
>>> matrices = CosmoSac2002Model.create_interaction_matrices(298.15)
>>> fig, ax = plt.subplots(figsize=(8, 6))
>>> im = ax.imshow(matrices[0], cmap="Spectral")
>>> _ = fig.colorbar(im, ax=ax, label="ΔW/(RT)")
>>> fig.tight_layout()

(Source code, png, hires.png, pdf)

../_images/Model-1.png

COSMO-SAC 2010 produces two matrices (one per temperature exponent):

>>> matrices = CosmoSac2010Model.create_interaction_matrices(298.15)
>>> len(matrices)
2
>>> all(m.shape == (153, 153) for m in matrices)
True

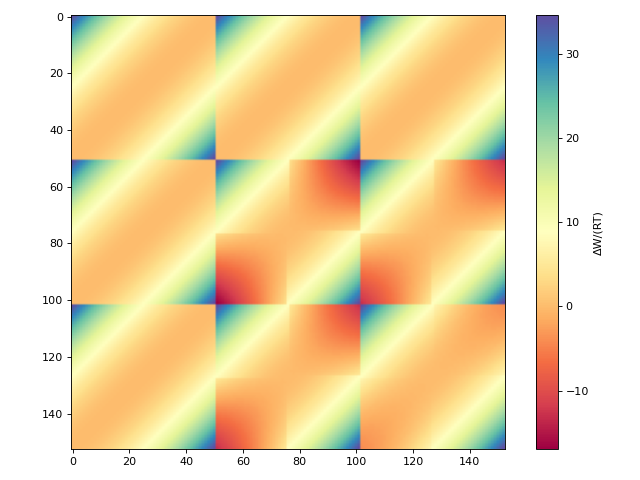

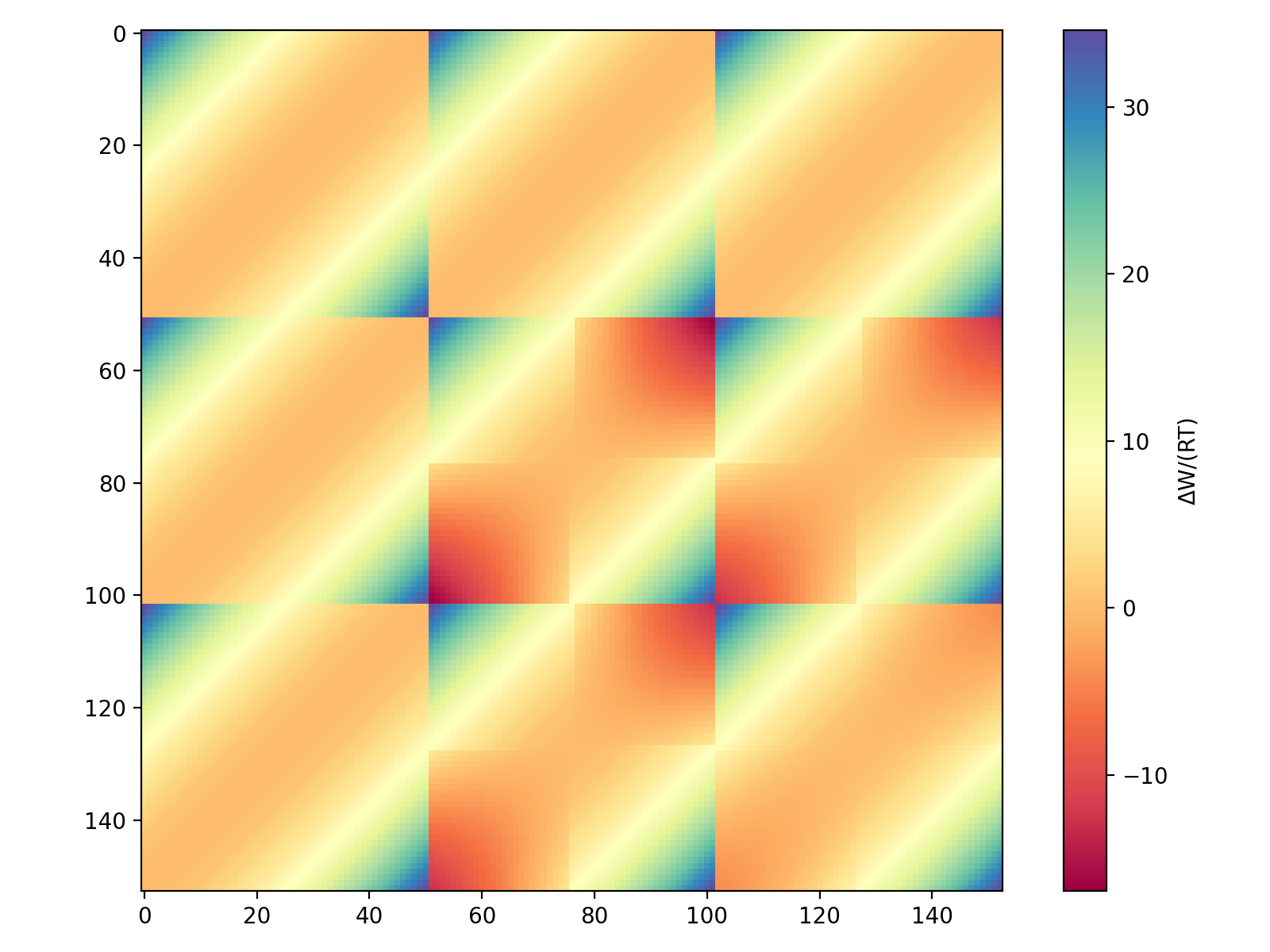

Plotting the COSMO-SAC 2010 interaction matrix:

>>> from cosmolayer.cosmosac import CosmoSac2010Model
>>> from matplotlib import pyplot as plt
>>> matrices = CosmoSac2010Model.create_interaction_matrices(298.15)
>>> fig, ax = plt.subplots(figsize=(8, 6))
>>> im = ax.imshow(sum(matrices), cmap="Spectral")
>>> _ = fig.colorbar(im, ax=ax, label="ΔW/(RT)")
>>> fig.tight_layout()

(Source code, png, hires.png, pdf)

../_images/Model-2.png
create_mixture(components)[source]#

Create a Mixture consistent with this model.

Parameters:

components (dict[str, str]) – Dictionary mapping component names to COSMO strings (contents of COSMO output files).

Returns:

Mixture configured with the model’s parameters.

Return type:

Mixture

Examples

>>> from importlib.resources import files
>>> from cosmolayer.cosmosac.model import CosmoSac2002Model, CosmoSac2010Model

Creating a mixture with the COSMO-SAC 2002 model:

>>> source = files("cosmolayer.data")
>>> components = {
...     "1-aminoethenol": (source / "C=C(N)O.cosmo").read_text(),
...     "2-aminoethanol": (source / "NCCO.cosmo").read_text(),
... }
>>> mixture = CosmoSac2002Model.create_mixture(components)
>>> len(mixture)
2
>>> mixture.interaction_matrices(298.15)[0].shape
(51, 51)

Creating a mixture with the COSMO-SAC 2010 model:

>>> mixture = CosmoSac2010Model.create_mixture(components)
>>> len(mixture)
2
>>> matrices = mixture.interaction_matrices(298.15)
>>> len(matrices)
2
>>> all(m.shape == (153, 153) for m in matrices)
True
